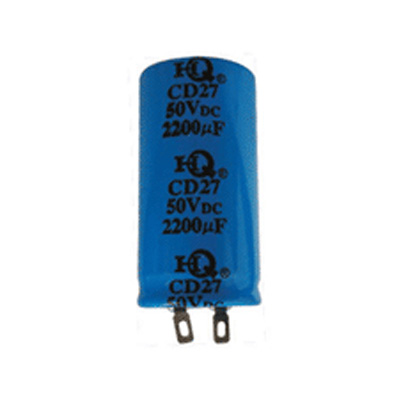

CD27 Series Aluminum Electrolytic Capacitors
Features: Large capacitance, wide temperature range, suit for use in DC or pulse circuits in various electronic equipments.
Technical data:
| Item | Characteristics |
| Temperature range | -40～+85℃ |
| Rated voltage range | 10～160V |
| Capacitance range | 220～47000μF |
| Capacitance tolerance | -10～+30% |
| leakage current | I≤0.01CR UR (μA) |
| Load life | 1000 Hours at 85℃ |

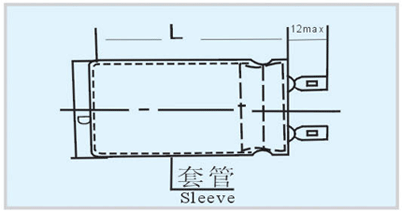

Dimensions:
| D±1.5 | 26 | 30 | 34 | 42 | ||
| L±3.0 | 50 | 60 | 60 | 60 | 80 | 80 |
Nomminal capacitance、rated voltage and case size table:
 | 10 | 16 | 25 | 32 | 50 | 63 | 100 | 160 |
220 | 26x50 | |||||||
330 | 26x60 | |||||||
470 | 26x60 | |||||||
680 | 26x50 | 30x60 | ||||||
1000 | 26x60 | 26x50 | 26x60 | 34x60 | ||||
1500 | 26x60 | 26x60 | 30x60 | 34x80 | ||||
2200 | 30x60 | 30x60 | 34x60 | 42x80 | ||||
3300 | 26x50 | 30x60 | 34x60 | 34x80 | ||||
4700 | 26x50 | 26x60 | 34x60 | 34x80 | 42x80 | |||
6800 | 26x50 | 26x60 | 30x60 | 34x80 | 42x80 | |||
10000 | 26x50 | 26x60 | 30x60 | 34x60 | 34x80 | 42x80 | ||
15000 | 26x60 | 30x60 | 34x60 | 42x80 | ||||
22000 | 30x60 | 34x60 | 42x80 | 42x80 | ||||
33000 | 34x60 | 34x80 | 42x80 | |||||
47000 | 34x80 |
