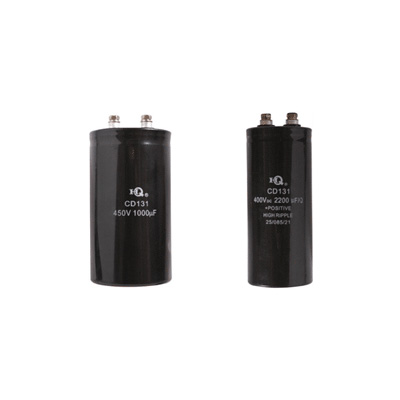

CD131 Series Aluminum Electrolytic Capacitors
Features: Large capacitance, high ripple current loaded, used in various ripple circuits and charge-discharge circuits as stored energy of electric welder magnetizing apparatus, etc.
Technical data:
| Item | Characteristics | |
| Temperature range | -40～+85℃ | -25～+85℃ |
| Rated voltage range | 25～100V | 160～500V |
| Capacitance range | 2200～100000μF | 220～22000μF |
| Capacitance tolerance | -10～+50% | -10～+30% |
| Leakage current | I≤0.03CR UR+20(μA) | |
| Load life | 1000 Hours at 85℃ | |

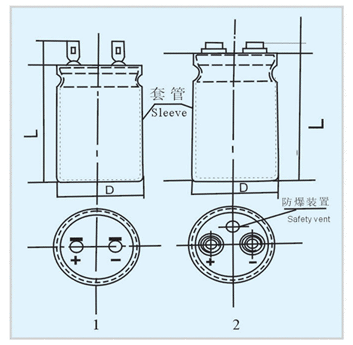

Dimensions:
D±1.5 | 50 | 65 | 80 | 90 | |||||
L±3.0 | 80 | 100 | 120 | 120 | 150 | 120 | 150 | 150 | 190 |
Nomminal capacitance、rated voltage and case size table:
 | 25 | 32 | 50 | 63 | 100 | 160 | 250 |
1500 | 50x80 | ||||||
2200 | 50x120 | 50x120 | |||||
3300 | 65x120 | 65x120 | |||||
4700 | 50x80 | 65x150 | 65x150 | 65x150 | |||
6800 | 50x100 | 50x80 | 50x100 | 65x150 | 80x150 | 80x150 | |
10000 | 50x80 | 50x120 | 50x100 | 65x120 | 65x150 | 80x150 | |
15000 | 50x80 | 50x120 | 65x120 | 65x150 | 65x150 | 80x150 | |
22000 | 50x100 | 50x120 | 65x120 | 65x150 | 65x150 | 80x150 | |
33000 | 50x100 | 50x120 | 65x150 | 80x150 | 65x150 |
| |
47000 | 50x120 | 65x150 | 80x150 |
|
|
|
| 300 | 350 | 400 | 450 | 500 |
220 | 50x80 | ||||
330 | 50x80 | 50x80 | |||
470 | 50x80 | 50x120 | 65x120 | ||
680 | 50x80 | 50x80 | 50x120 | 65x120 | 65x120 |
1000 | 50x120 | 50x120 | 65x120 | 65x120 | 65x120 |
1500 | 65x120 | 65x120 | 65x120 | 65x120 | 80x150 |
2200 | 65x120 | 65x120 | 65x120 | 65x150 | 80x150 |
3300 | 65x150 | 65x150 | 80x120 | 80x150 | 90x150 |
4700 | 80x150 | 80x150 | 80x150 | 90x150 | |
8200 | 90x190 |
